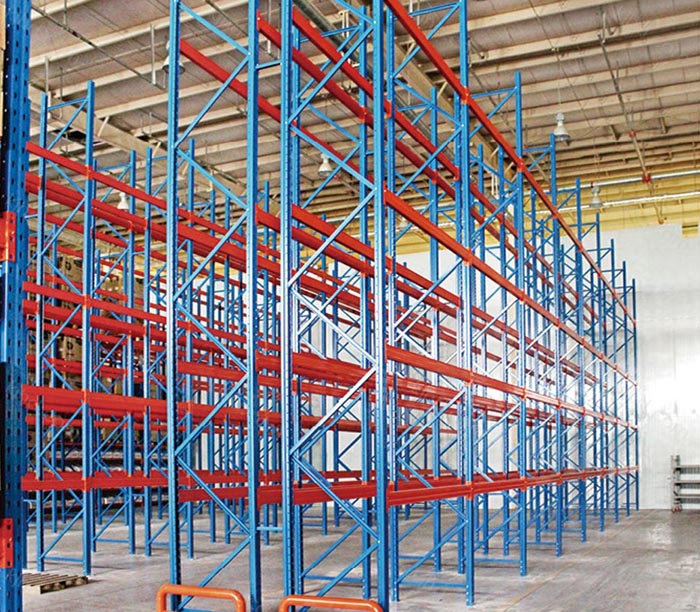

横梁式货架

横梁式货架又称托盘式货架，该类型货架结构简单，是应用最为广泛的一种货架类型。安装和操作都很方便，容易查找货位。一般以托盘为单位进行储存，根据货物特性来确定托盘的类型、规格、尺寸以及重量和堆高尺寸。根据托盘单元货物的外形和重量、库房尺寸来确定货架规格。每层一般可存储1至3个托盘单元。

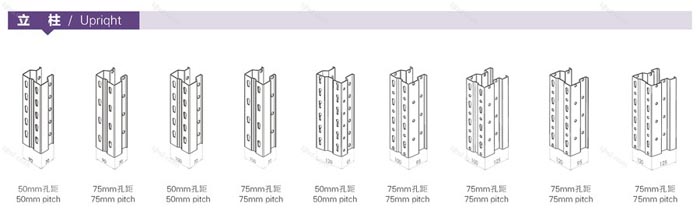

货架由承载立柱片及横梁组成，柱片和横梁的连接为挂接式，采用安全销固定，结构简单可靠。如遇到所存放的货物种类发生变化时，管理人员可以自行以50mm或75mm节距上下自由调整横梁高度。

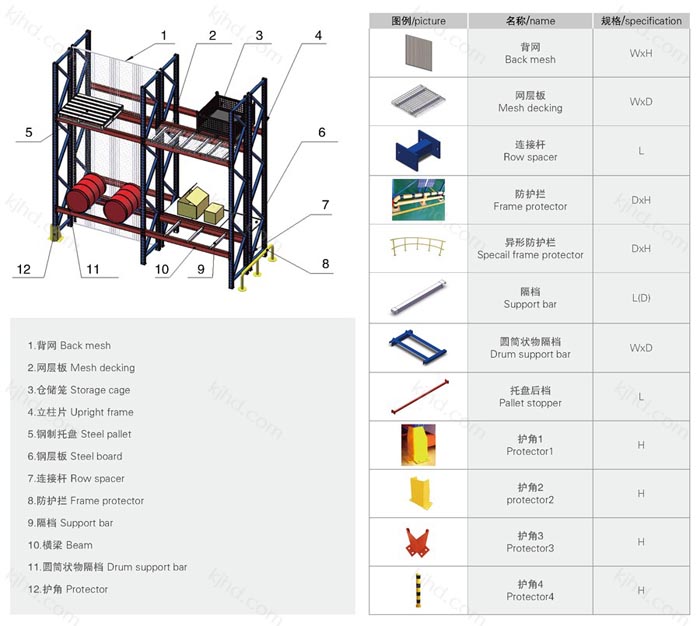

货架可配置其它安全附属设施，如背网、钢层板、隔档、托盘后档、防护栏、护角等。
With simple structure, pallet racking has the widest application. This kind of racking can be conveniently installed and operated, and allows easy searching of goods location. Generally, a pallet is used as a unit of storage, and the type, specs and size of pallet, as well as storage weight and stacks height, is determined according to goods features. Specs of such racking are determined according to the outline and weight of the goods in pallet and the dimension of the warehouse. Generally each level can contain 1-3 pallets.

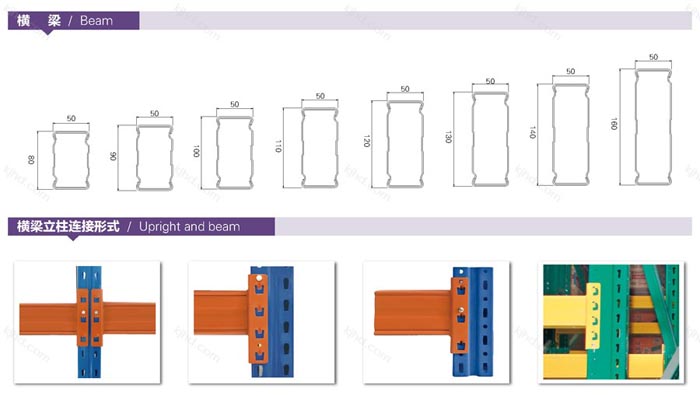

The racking is composed of upright frame and beam, which are connected in the form of hitching and fixed with safety pins, so that the structure is simple but reliable. In the event of any change in the varieties of goods stored, warehouse keepers may adjust the beam height freely with a pitch of 50mm or 75mm.
The racking can be equipped with other safety accessories such as back mesh, steel board, support bar, pallet stopper, frame protector and corner protector.

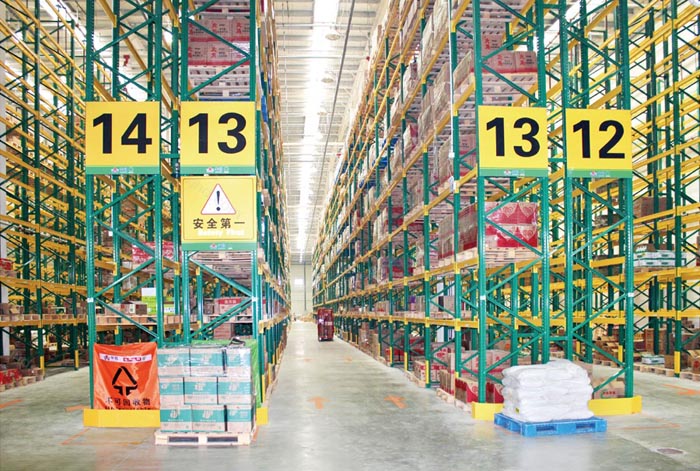

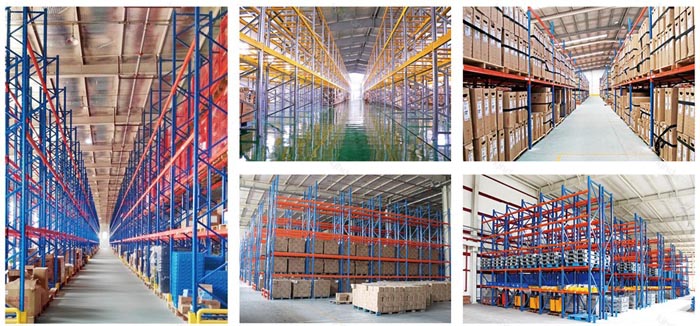

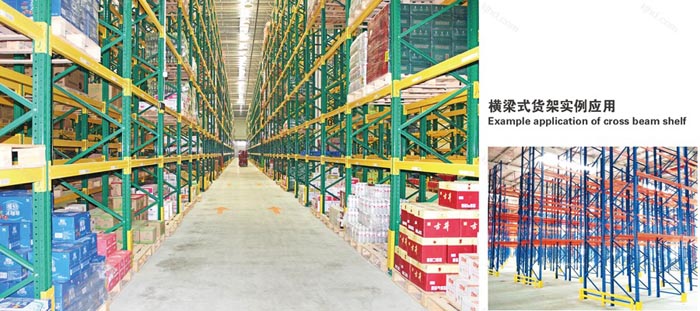

 货架布局一般分为标准通道式、窄巷道式（VNA）、双深度式，可配置普通叉车、前移式叉车、三向叉车等各种型号叉车，是最常用的仓储系统设计方案。
Layouts of such racking generally include standard channel type, very narrow aisle (VNA) type, and double deep type. It can be used together with common forklift, forward forklift, three-direction forklift, and so on. It is the most frequently used warehousing solution.
